OCD5 Thermostat - Smart Touchscreen Thermostat

The OCD5 Thermostat from OJ Microline is a smart and user-friendly thermostat that allows you to fully manage your electric underfloor heating. Thanks to its built-in QR code functionality, you can easily access all settings, data, and consumption information via your smartphone or tablet. This way, you always have insight into energy consumption, costs, and settings, wherever you are.

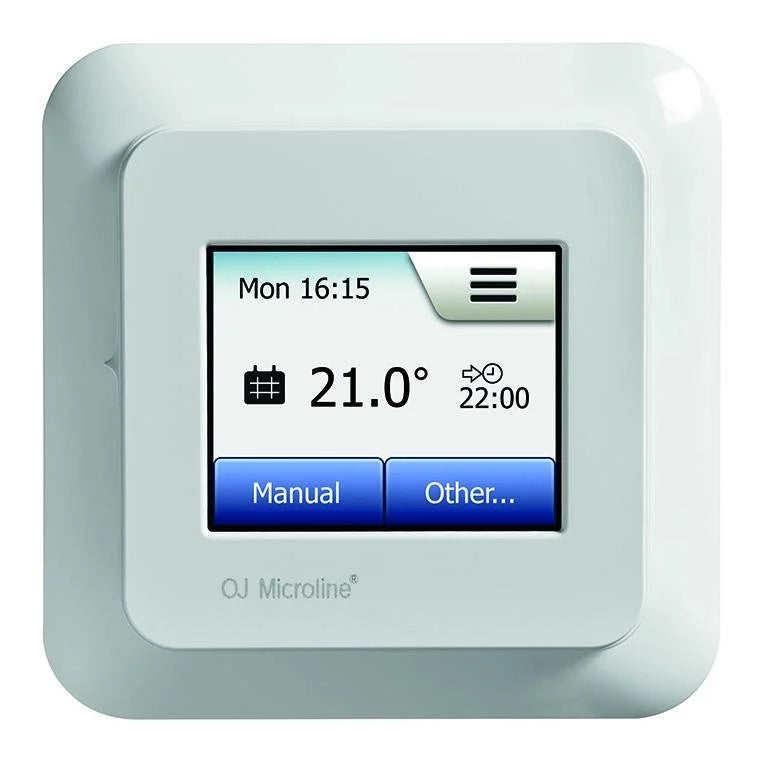

This thermostat features a modern touchscreen, an intuitive interface, and a frame that fits standard Busch-Jaeger switching equipment. This allows the thermostat to integrate seamlessly into any living space.

Daily check with individual temperature settings

The OCD5 lets you set individual temperatures for each day of the week, divided into six time periods . The thermostat comes standard with a preset heating program suitable for most households, making the system ready to use right out of the box.

The built-in adaptive function learns how quickly your floor reacts and automatically adjusts the switch-on time. This way, the desired temperature is reached at precisely the right time without wasting energy.

The sensitive touchscreen responds to even a light touch and makes operation simple and fast.

QR code reading: complete control in one scan

The QR function of the OJ Microline OCD5 allows you to effortlessly read all settings:

• Current settings and modes

• Temperature programs entered by you

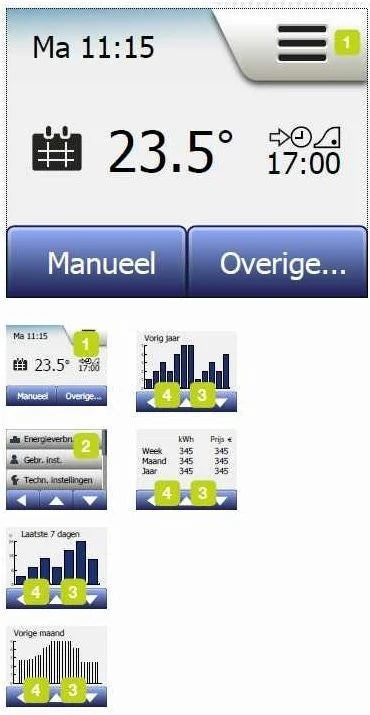

• Energy consumption and cost indication

• Historical data and configurations

Simply scan the QR code on the thermostat and all information will appear clearly on your smartphone or tablet.

Technical Specifications – OJ Microline OCD5

• Supply voltage: 100–240 VAC

• Max. power: 16A / 3600 W (resistive load), 1A (inductive)

• Standby consumption: < 0.5 W

• Installation: flush mount

• Switching capacity: max. 16A

• Comfort temperature range: +5 °C to +40 °C

• Floor temperature range: +5 °C to +40 °C

• Control principle: PWM / PI

• Protection class: IP21

• Dimensions: 82 × 82 × 40 mm

• Installation depth: 23 mm

• Color: RAL 9010 – neutral white

• Display: TFT 176 × 220 pixels

• Room sensor: yes (built-in)

• Floor sensor: included, 3 meter cable

• Timer: automatic

• Operation: intuitive touchscreen

• Manual: Dutch

• Certification: CE, VDE, BEAB, NEMKO
