H4 Exclusive Series Infrared Panel with WiFi

The Ruby Home H4 Exclusive Series represents the latest generation of infrared heating—designed based on years of customer experience and technological innovation. These panels combine powerful, energy-efficient heat with a modern design, built-in Wi-Fi control , and a convenient remote switch .

Perfect for those who want to combine comfort, convenience and style in one heating system.

Smart infrared technology with WiFi control

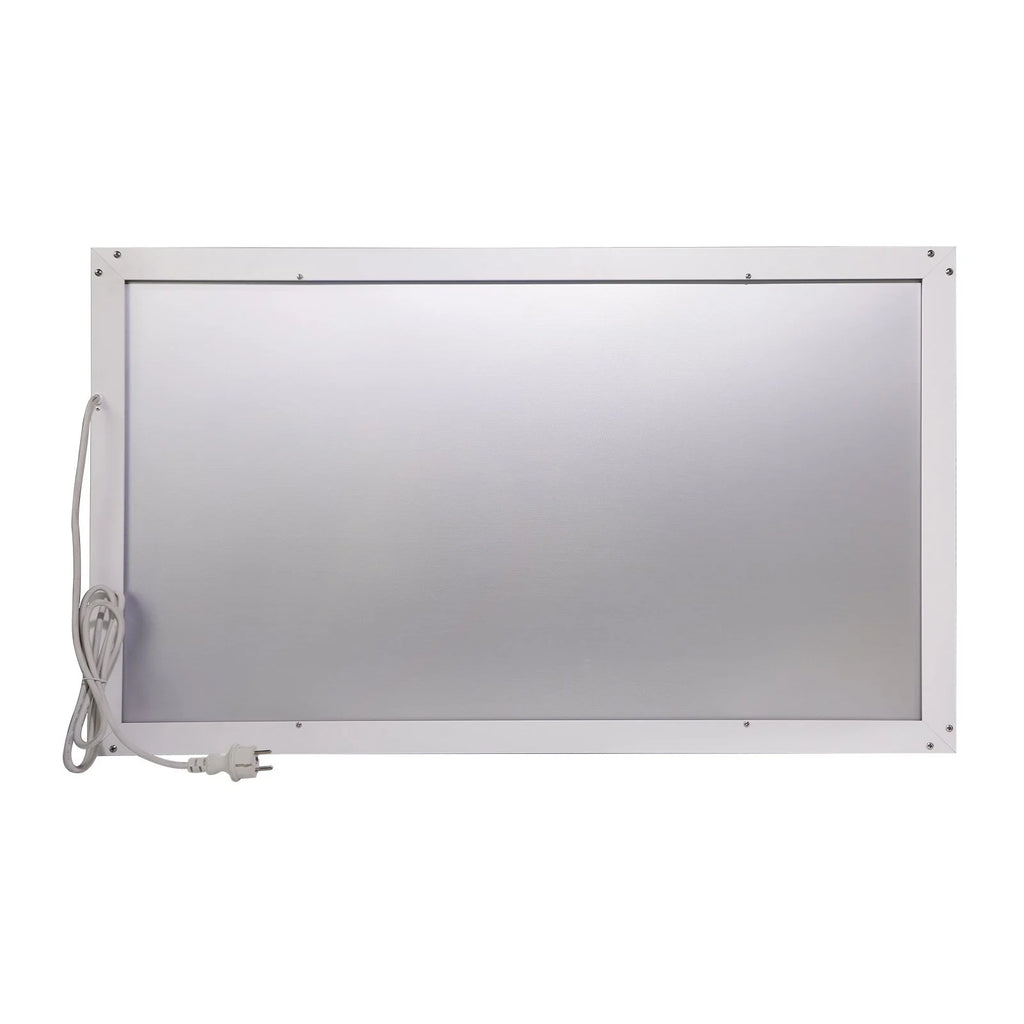

The H4 Exclusive Series features the latest infrared heating technology, with high-quality insulation on the back . This ensures a higher surface temperature and powerful, direct heat output.

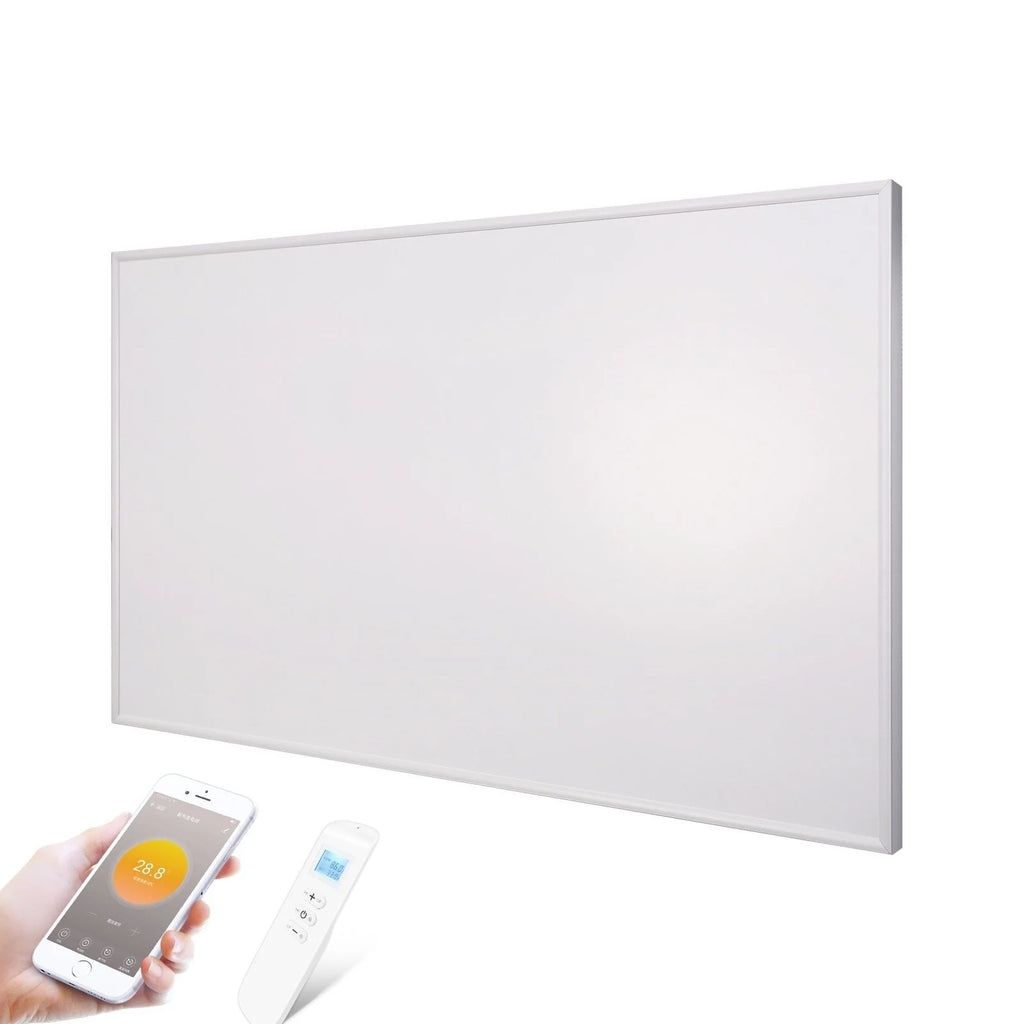

Thanks to the built-in Wi-Fi module, you can easily control the panel via the free Ruby Home app on your smartphone. This allows you to set the temperature and programs from anywhere. A remote switch is also included for manual operation.

Modern design & easy installation

The H4 Exclusive Series is designed with attention to detail: a sleek, minimalist design that fits seamlessly into modern interiors.
The panels can be mounted flush against the ceiling and are ideal for both living rooms and bathrooms (zones 2 and 3).
Thanks to their IP54 protection class , they are splash-proof and safe for use in damp areas.

(Note: these panels are not suitable for sloping walls.)

Energy efficient and maintenance free

Thanks to its efficient radiant heat, the H4 Exclusive Series heats objects and surfaces directly, not the air.
This results in a more comfortable feeling at lower temperatures and lower energy consumption.
In addition, the panels are maintenance-free and have an expected lifespan of more than 120,000 hours .

Available models and sizes

Technical specifications

• Power: 400W / 660W / 860W / 1000W

• Housing: Aluminum, white coated (RAL 9016)

• Protection class: IP54 (splash-proof)

• Thickness: 22 mm

• Installation: Ceiling (not suitable for sloping walls)

• Temperature limitation: thermal protection against overheating

• Lifespan: >120,000 hours

• Required power:

  • 30 W/m³ for living rooms

  • 25 W/m³ for bedrooms

  • 50 W/m³ for bathrooms

Included in delivery

• H4 Exclusive infrared panel

• Remote control

• 1.9 meter power cord with plug

• Mounting screws and plugs

• Installation manual

The Ruby Home H4 Exclusive Series is the ideal choice for those who want to combine modern technology with comfort and energy efficiency.
With WiFi control, a sleek design, and reliable performance, this panel is a stylish upgrade for any room.
