Ecosun SK-Series Infrared Panel
€169,00
Ordered before 3pm, shipped the same day
Please select the appropriate product variant below that suits your needs.
The Ecosun SK Series from Ruby Home offers stylish, efficient heating in a sleek, minimalist design.
These frameless infrared panels are ideal for ceiling mounting and provide even, comfortable warmth in living rooms, hallways, work spaces or garden sheds.
With their smooth, white finish and sleek design, they fit seamlessly into any interior.

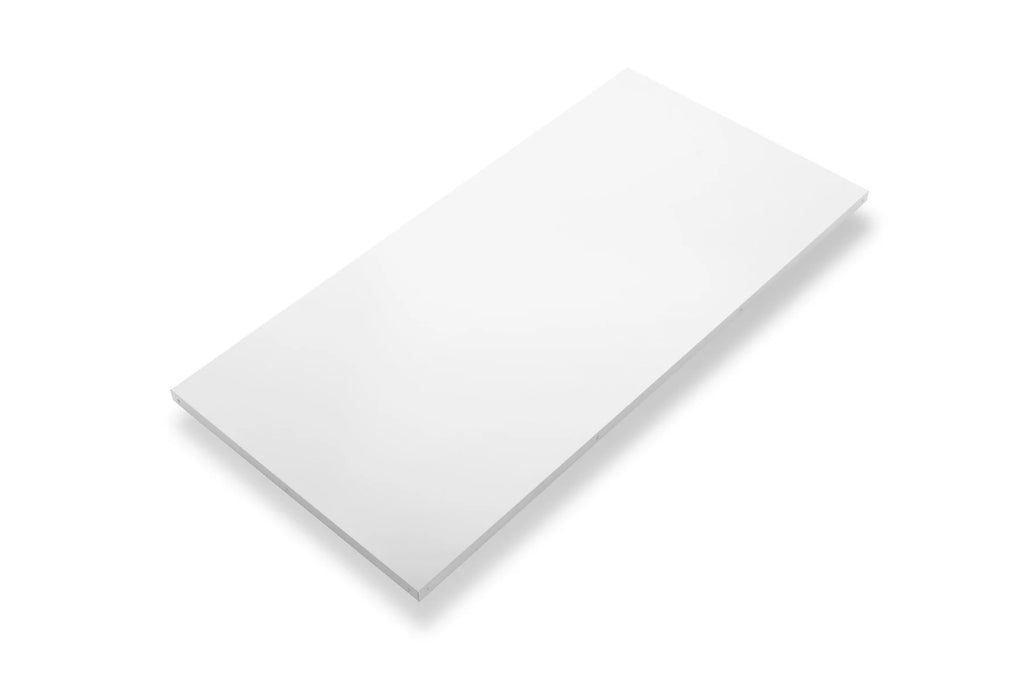

Sleek design without a frame

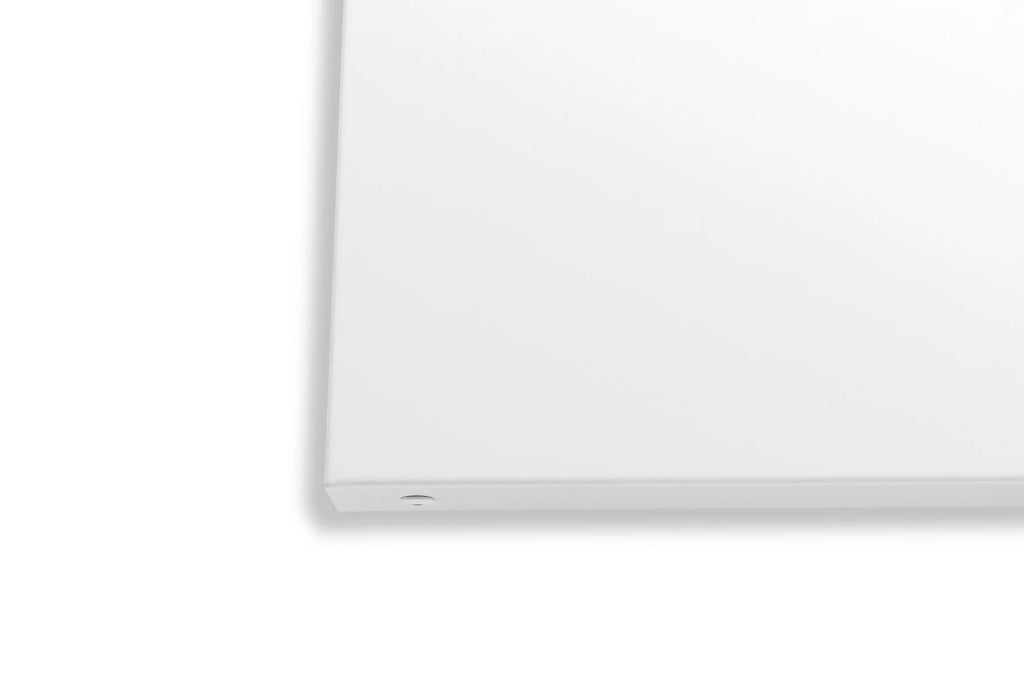

The Ecosun SK series is distinguished by its smooth, frameless surface that distributes heat evenly.
Thanks to the lightweight aluminium design and simple ceiling mounting, you can enjoy pleasant, natural warmth within minutes.

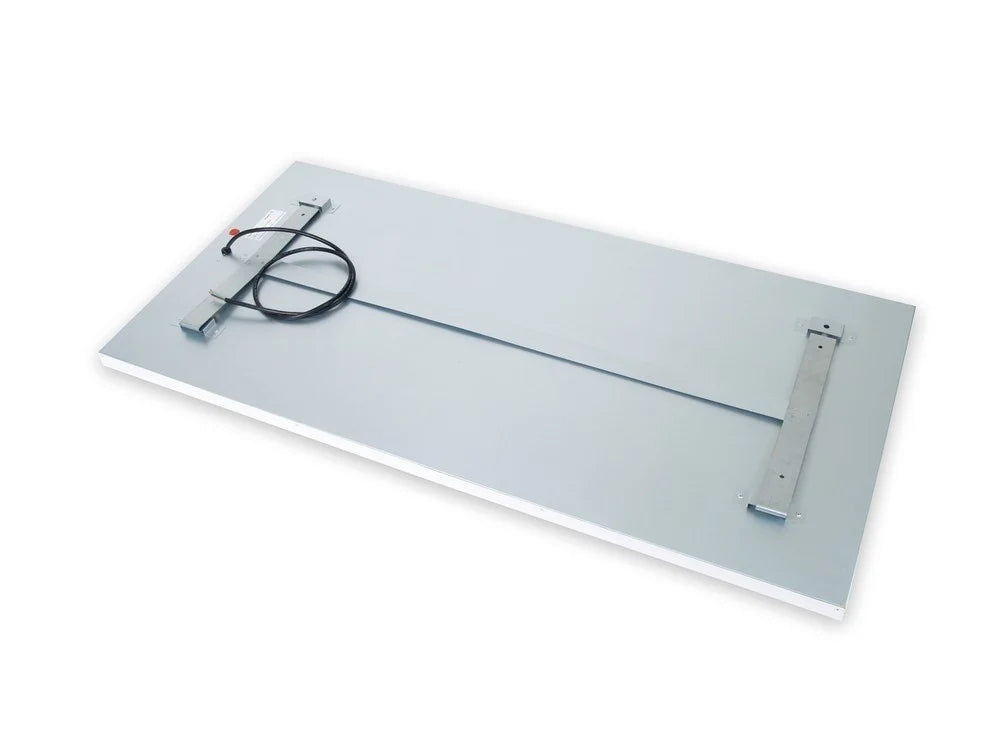

The panels are finished in white (RAL 9016) and have a fully closed back for maximum safety and efficiency.
Lightweight, powerful and quiet
With capacities ranging from 300 to 850 watts, these panels provide efficient radiant heat without air displacement or noise.
This makes them perfectly suited for use in spaces where tranquility, comfort and design are important.
The IP54 protection class offers splash-proofness, making the panel resistant to light moisture, such as in corridors or work areas.
(This series is not suitable for direct use in the bathroom .)
Energy-efficient infrared technology
The Ecosun SK panels do not heat the air, but directly the objects and surfaces in the room.
This provides a constant, natural heat that is retained for longer, with lower energy consumption than conventional heating.
For automatic temperature control, the panel can be connected to a thermostat .
Ruby Home offers a variety of options – from simple rotary thermostats to digital models with daily programs.
Available models and sizes
| Assets | Dimensions (cm) | Weight | Application |
|---|---|---|---|
| 300 Watt | 59 × 59 cm | 3 kg | Small spaces or additional heating |
| 600 Watt | 59 × 119 cm | 5 kg | Medium sized rooms or work spaces |
| 850 Watt | 79 × 119 cm | 7 kg | Larger living spaces or office environments |
Technical specifications
-
Power: 300W / 600W / 850W
-
Housing: Aluminum, smooth surface without frame
-
Color: White (RAL 9016)
-
Protection class: IP54 (splash-proof)
-

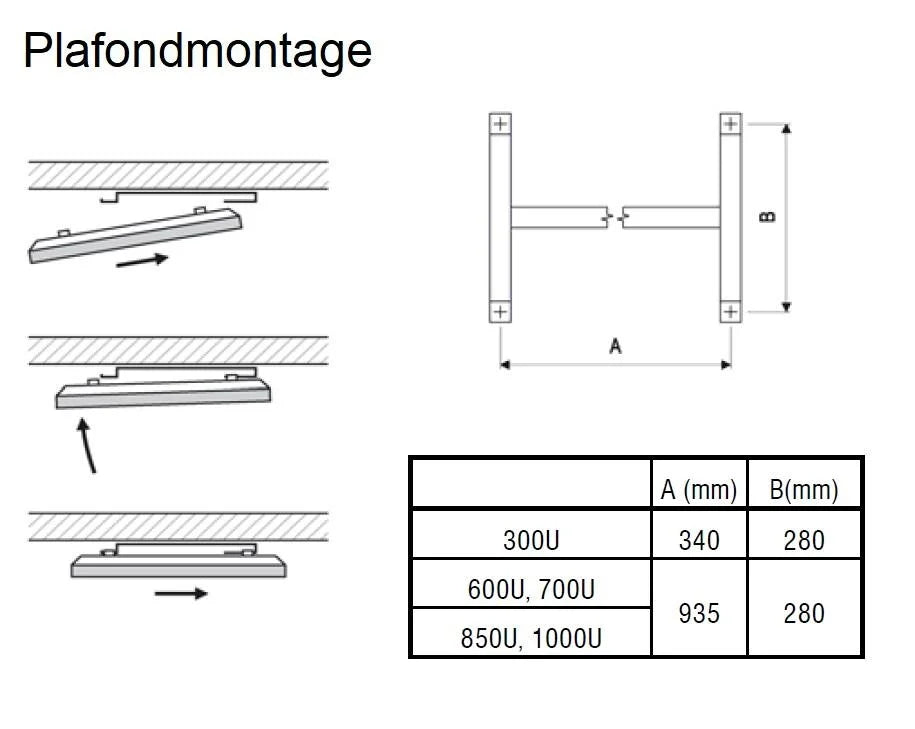

Mounting: Ceiling
-
Weight: 3 – 7 kg
-
Required power:
-
35 W/m³ for living rooms
-
30 W/m³ for bedrooms
-
60 W/m³ for bathrooms (other series recommended)
-
-
Lifespan: >100,000 hours
-
Operation: External thermostat (not included)
Included in delivery
-
Ecosun SK-Series infrared panel
-
Mounting bracket
-
Power cable (2 meters)
-
Installation manual
-
2 year warranty
The Ecosun SK Series from Ruby Home combines sleek aesthetics with high-quality infrared technology.
With its smooth finish, lightweight construction and quiet operation, this panel offers a comfortable and stylish heating solution for any room.
