Ecosun P-Series Infrared panel
€229,00
Ordered before 3pm, shipped the same day
Please select the appropriate product variant below that suits your needs.
The Ecosun P-Series from Ruby Home is the latest model in the Ecosun collection and represents the perfect balance between design and performance.
These ultra-thin infrared panels — also known as the Ecosun Slim — provide a stylish, energy-efficient heating solution for living rooms, bedrooms and bathrooms.
Thanks to their smooth surface and thin design, they look modern and minimalist, without compromising on thermal comfort.
Ultra-thin design, maximum efficiency
The Ecosun P-Series has been specially developed for those looking for a discreet, sleek panel with high performance.
Although the panel is significantly thinner than previous models, the insulation value at the back remains just as high — meaning there is no heat loss.
The result: an elegant, ultra-thin solution with powerful radiant heat that spreads evenly throughout the room.
Versatile and safe
The panels are suitable for ceiling mounting and can also be safely used in damp areas thanks to the IP44 protection class .
This makes the Ecosun P-Series ideal for use in bathrooms (zones 2 and 3), but also in living rooms, bedrooms, offices or garden rooms.
With a smooth finish in RAL 9010 (pure white), they fit in perfectly with modern interiors.
Energy-efficient radiant heat
The Ecosun P panels heat objects and surfaces directly via infrared radiation instead of air circulation.
This means the heat is retained for longer and a pleasant, healthy indoor climate is created — without dry air or draughts.
The temperature can be easily controlled with a thermostat (sold separately).
Ruby Home offers various options for this, from simple rotary knob models to smart digital thermostats with daily programs.
Available models and sizes
| Assets | Dimensions (cm) | Weight | Application |
|---|---|---|---|
| 450 Watt | 59 × 89 cm | ±9 kg | Small spaces or additional heating |
| 700 Watt | 59 × 119 cm | ±11 kg | Medium sized rooms or bedrooms |
| 850 Watt | 60 × 150 cm | ±14 kg | Larger rooms or bathrooms (zone 2/3) |
Technical specifications
-
Power: 450W / 700W / 850W
-
Housing: Aluminum, smooth surface without frame
-
Color: White (RAL 9010)
-
Protection class: IP44 (splash-proof)
-

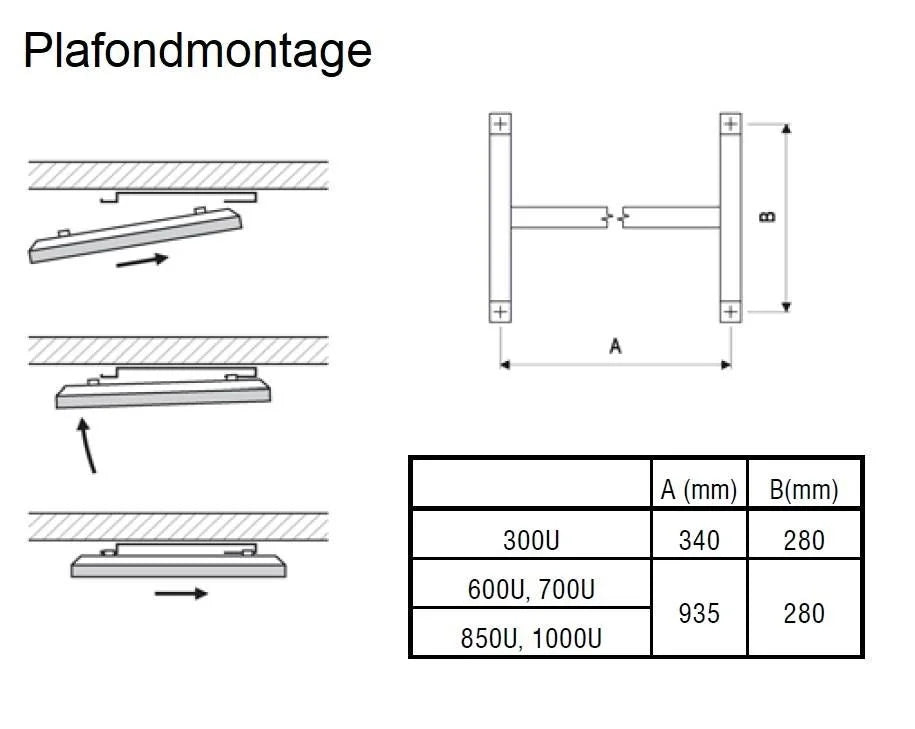

Mounting: Ceiling
-
Weight: 9 – 14 kg
-
Temperature range: approx. 75–95°C
-
Required power:
-
35 W/m³ for living rooms
-
30 W/m³ for bedrooms
-
60 W/m³ for bathrooms
-
-
Operation: External thermostat (not included)
-
Lifespan: >100,000 hours
Included in delivery
-
Ecosun P-Series infrared panel
-
Mounting bracket
-
Power cable (2 meters) with plug
-
Installation manual
The Ecosun P-Series from Ruby Home offers a stylish and reliable way to heat.
With its ultra-thin design, efficient heat dissipation and safe ceiling mounting, this panel is the ideal choice for modern homes.
